Product Summary

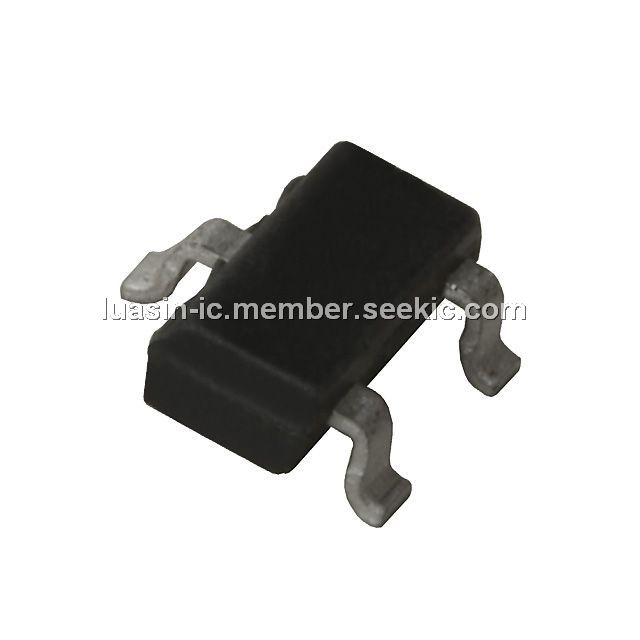

The LM385M3X-2.5 is a micropower 2-terminal band-gap voltage regulator diode. Operating over a 20 μA to 20 mA current range, it features exceptionally low dynamic impedance and good temperature stability. The LM385M3X-2.5 is also available in a low-cost TO-92 molded package, as well as S.O. and SOT-23.
Parametrics
Absolute maximum ratings: (1)Reverse Current: 30 mA; (2)Forward Current: 10 mA; (3)Operating Temperature Range for LM385-2.5: 0°C to 70°C; (4)ESD Susceptibility:2kV; (5)Storage Temperature:-55°C to + 150°C; (6)Soldering Information:TO-92 Package (10 sec.): 260°C; TO-46 Package (10 sec.): 300°C; SO and SOT Package:Vapor Phase (60 sec.) 215°C; Infrared (15 sec.) 220°C.
Features
Features: (1)±20 mV (±0.8%) max. initial tolerance (A grade); (2)Operating current of 20 μA to 20 mA; (3)0.6Ω dynamic impedance (A grade); (4)Low temperature coefficient; (5)Low voltage reference—2.5V; (6)1.2V device and adjustable device also available—LM185-1.2 series and LM185 series, respectively.

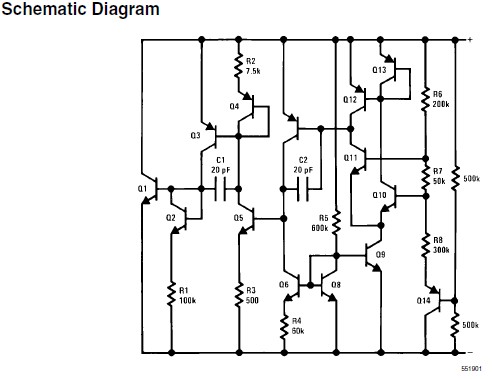

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM385M3X-2.5 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
 |
LM385M3X-2.5/NOPB |
National Semiconductor (TI) |
Voltage & Current References MICROPWR VLTG REF DIODE |
Data Sheet |
|
|
||||||||||||
