Product Summary
The MIC4680YM SuperSwitcher is an easy-to-use fixed or adjustable output voltage step-down (buck) switch-mode voltage regulator. The 200kHz MIC4680YM achieves up to 1.3A of continuous output current over a wide input range in a 8-pin SOIC. The MIC4680 is available in 3.3V and 5V fixed output versions or adjustable output down to 1.25V. The MIC4680YM has an input voltage range of 4V to 34V, with excellent line, load, and transient response. The regulator performs cycle-by-cycle current limiting and thermal shutdown for protection under fault conditions. In shutdown mode, the regulator draws less than 2μA of standby current. The MIC4680YM SuperSwitcher regulator requires a minimum number of external components and can operate using a standard series of inductors and capacitors. Frequency compensation is provided internally for fast transient response and ease of use. The MIC4680YM is available in the 8-pin SOIC with a –40°C to +125°C junction temperature range.
Parametrics
Absolute maximum ratings:(1)Supply Voltage (VIN): +38V; (2)Shutdown Voltage (VSHDN): –0.3V to +38V; (3)Steady-State Output Switch Voltage (VSW): –1V; (4)Feedback Voltage [Adjustable] (VFB): +12V; (5)Storage Temperature (Ts): –65°C to +150°C; (6)Supply voltage (VIN): +4V to +34V; (7)Junction Temperature (TJ):+125°C; (8)Package Thermal Resistance SIOC (θJA)：63°C/W.
Features
Features:(1)SOIC-8 package with up to 1.3A output current; (2)All surface mount solution; (3)Only 4 external components required; (4)Fixed 200kHz operation; (5)3.3V, 5V, and adjustable output versions; (6)Internally compensated with fast transient response; (7)Wide 4V to 34V operating input voltage range; (8)Less than 2μA typical shutdown-mode current; (9)Up to 90% efficiency; (10)Thermal shutdown; (11)Overcurrent protection.

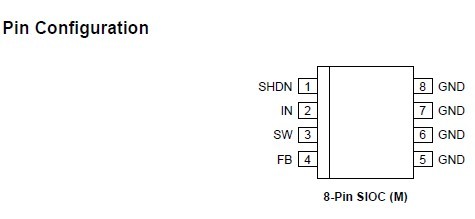

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC4680YM |
|
IC REG BUCK ADJ 1.3A 8SOIC |
Data Sheet |
|
|
||||||||||||||
|

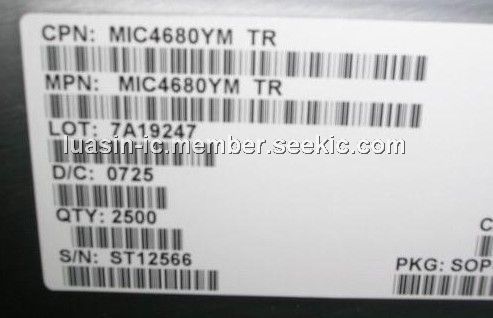

MIC4680YM TR |
|
IC REG BUCK ADJ 1.3A 8SOIC |
Data Sheet |
|
|
||||||||||||||
