Product Summary
The MIC5205YM5 belongs to the MIC5205 family which designed as one kind of efficient linear voltage regulator with ultralow-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600μA at 100mA output). This device can be used in (1)cellular telephones; (2)laptop, notebook, and palmtop computers; (3)battery-powered equipment; (4)PCMCIA Vcc and Vpp regulation/switching; (5)consumer/personal electronics; (6)SMPS post-regulator/dc-to-dc modules; (7)high-efficiency linear power supplies.
Parametrics
Absolute maximum ratings:(1)supply input voltage (Vin):-20V to +20V;(2)enable input voltage (VEN):-20V to +20V;(3)power dissipation (PD):internally limited;(4)lead temperature (soldering, 5 sec.):260°C;(5)junction temperature (TJ):-40°C to +125°C;(6)storage temperature (Ts):-65°C to +150°C;(7)input voltage (VIN):+2.5V to +16V;(8)enable input voltage (VEN):0V to VIN.
Features
Features:(1)ultra-low-noise output; (2)high output voltage accuracy; (3)guaranteed 150ma output; (4)low quiescent current; (5)low dropout voltage; (6)extremely tight load and line regulation; (7)very low temperature coefficient; (8)current and thermal limiting; (9)reverse-battery protec-tion; (10)"zero" off-mode current; (11)logic-controlled electronic enable.

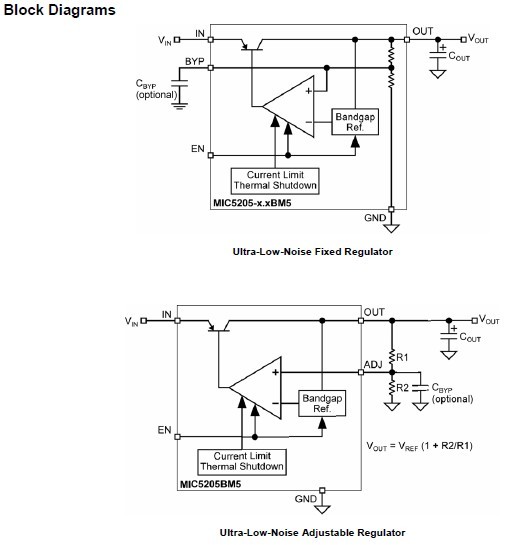

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC5205YM5 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
MIC5205YM5 TR |
|
IC REG LDO ADJ .15A SOT23-5 |
Data Sheet |
|
|
||||||||||||||||||
