Product Summary
The ESDA6V1P6 is a monolithic array designed to protect up to 5 lines against ESD transients. It is ideal where board space saving and reduced line capacitance are required.
Parametrics
Absolute maximum ratings: (1)IEC 61000-4-2 level 4 standard: air discharge: ±15 kV, contact discharge: ±8 kV; (2)Peak pulse power (8/20 μs) Tj initial = Tamb: 150 W; (3)Junction temperature: 150 ℃; (4)Storage temperature range: -55 to +150 ℃; (5)Maximum lead temperature for soldering during 10 s at 5 mm for case: 260 ℃; (6)Operating temperature range: -40 to +150 ℃.
Features
Features: (1)4 / 5 Unidirectional (ESDA6V1P6 and ESDA6V1-5P6) and Bidirectional (ESDA14V2BP6 and ESDA25-4BP6) Transil functions; (2)Breakdown voltage: VBR = 6.1 V min., 14.2 V min and 25 V min; (3)Low leakage current: < 500 nA (ESDA6V1P6 / ESDA6V1-5P6), < 1 μA (ESDA14V2BP6 and ESDA25-4BP6); (4)Very small PCB area < 2.6 mm2.

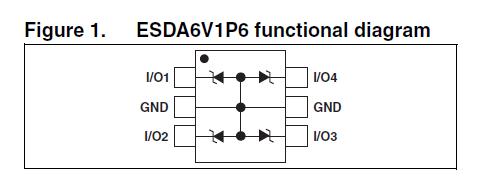

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ESDA6V1P6 |
STMicroelectronics |
TVS Diode Arrays 150W 6.1V Quad Array |
Data Sheet |
|
|
||||||||||||
