Product Summary
The LMC7101AIM5X is a high performance CMOS operational amplifier available in the space saving SOT 23-5 Tiny package. This makes the LMC7101AIM5X ideal for space and weight critical designs. The performance is similar to a single amplifier of the LMC6482/4 type, with rail-to-rail input and output, high open loop gain, low distortion, and low supply currents. The main benefits of the Tiny package are most apparent in small portable electronic devices, such as mobile phones,pagers, notebook computers, personal digital assistants, and PCMCIA cards. The tiny amplifiers can be placed on a board where they are needed, simplifying board layout.
Parametrics
Absolute maximum ratings:(1)ESD Tolerance: 2000V; (2)Difference Input Voltage: ±Supply Voltage; (3)Voltage at Input/Output Pin: (V+) + 0.3V, (V-)- 0.3V; (4)Supply Voltage (V+ - V-): 16V; (5)Current at Input Pin: ±5 mA; (6)Current at Output Pin (Note 3): ±35mA; (7)Current at Power Supply Pin: 35 mA; (8)Lead Temp. (Soldering, 10 sec.): 260°C; (9)Storage Temperature Range: -65°C to +150°C; (10)Junction Temperature (Note 4): 150°C.
Features
Features:(1)Tiny SOT23-5 package saves space—typical circuit layouts take half the space of SO-8 designs; (2)Guaranteed specs at 2.7V, 3V, 5V, 15V supplies; (3)Typical supply current 0.5 mA at 5V; (4)Typical total harmonic distortion of 0.01% at 5V; (5)1.0 MHz gain-bandwidth; (6)Similar to popular LMC6482/4; (7)Input common-mode range includes V- and V+; (8)Tiny package outside dimensions—120 x 118 x 56 mils, 3.05 x 3.00 x 1.43 mm.

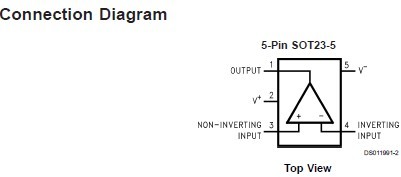

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMC7101AIM5X |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LMC7101AIM5X/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps TINY LOW POWER OP AMP W/ RRIO |
Data Sheet |
|
|
||||||||||||
