Product Summary

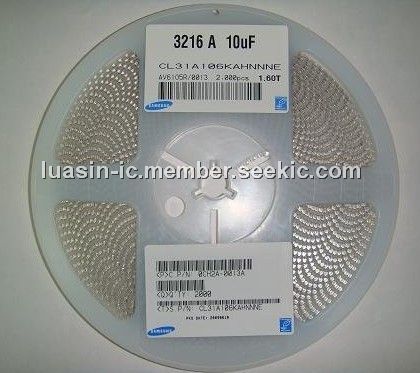

The CL31A106KAHNNNE is a multi-layer ceramic capacitor with very good quality, all new and original and lowest price. Its capacitance is 10uF. Its capacitance tolerance is ±10 %. This product is packaged by embossed Type, 7" reel. Its rated Voltage is 25 V. What is more, its plating is Sn 100% (Pb Free). Its thickness is 1.6 ± 0.2 mm.
Parametrics
Specification: (1)Series: Samsung Multi-layer Ceramic Capacitor; (2)Size: 1206 (inch code) L: 3.2 ± 0.2 mm W: ± 0.2 mm; (3)Dielectric: X5R ; (4)Inner electrode:Ni; Termination:Cu; Plating: Sn 100% (Pb Free); (5)Capacitance: 10 uF; (6)Capacitance tolerance: ±10 % ; (7)Product: Normal; (8)Rated Voltage: 25 V ; (9)Special: Reserved for future use; (10)Thickness: 1.6 ± 0.2 mm ; (11)Packaging: Embossed Type, 7" reel.
Features
Features: (1)Supplier: Samsung electro-mechanics; (2)Samsung P/N: CL31A106KAHNNNE; (3)Product : Multi-layer Ceramic Capacitor; (4)Description: CAP, 10uF, 25V, ±10%, X5R, 1206.
 |
