Product Summary

The TAJA106K016RNJ belongs to the TAJ standard series, which encompasses the five key sizes recognized by major OEMs throughout the world. The V case size has been added to the TAJ range to allow high CVs to be offered. The operational temperature is -55°C to +85°C rated voltage and up to +125°C with voltage derating in applications utilizing recommended series resistance.

Parametrics

Technical specifications: (1)Technical Data: All technical data relate to an ambient temperature of +25°C; (2)Capacitance Range: 0.10 μF to 2200 μF; (3)Capacitance Tolerance: ±10%; ±20%; (4)Rated Voltage (VR) ≤+85°C: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50, 63; (5)Category Voltage (VC) ≤+125°C: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33, 42; (6)Surge Voltage (VS) ≤+85°C: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65, 82; (7)Surge Voltage (VS) ≤+125°C: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40, 50; (8)Temperature Range: -55°C to +125°C; (9)Reliability: 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level; (10)Qualification: CECC 30801 - 005 issue 2 EIA 535BAAC; (11)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request Meets requirements of AEC-Q200.

Features

Features: (1)General purpose SMT chip tantalum series; (2)6 case sizes available; (3)Low profile options available; (4)CV range: 0.10-2200μF / 2.5-50V.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

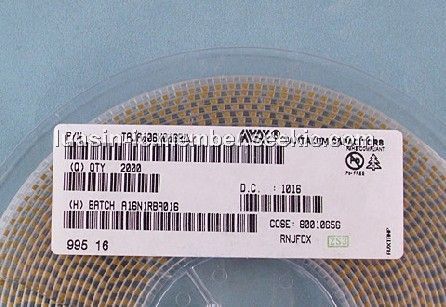

TAJA106K016RNJ
TAJA106K016RNJ
AVX
Tantalum Capacitors - Solid SMD 16volts 10uF 10%
Data Sheet
0-1: $0.07
1-100: $0.05
100-200: $0.04
200-500: $0.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TAJA104K035H
TAJA104K035H

CAP TANT 0.1UF 35V 10% 1206
Data Sheet
0-2000: $0.41
TAJA104K035HNJ
TAJA104K035HNJ
AVX
Tantalum Capacitors - Solid SMD 35volts 0.10uF 10%
Data Sheet
0-1: $0.54
1-100: $0.36
100-500: $0.27
500-1000: $0.25
1000-2000: $0.17
TAJA104K035RNJ
TAJA104K035RNJ
AVX
Tantalum Capacitors - Solid SMD 35volts 0.10uF 10%
Data Sheet
0-1: $0.47
1-100: $0.36
100-200: $0.30
200-500: $0.23
TAJA104K035SNJ
TAJA104K035SNJ

CAP TANT 0.1UF 35V 10% 1206
Data Sheet
0-8000: $0.16
TAJA104K035YNJ
TAJA104K035YNJ
AVX
Tantalum Capacitors - Solid SMD 35V 0.1uF 10%
Data Sheet
0-1350: $0.25
1350-2000: $0.17
2000-5000: $0.17
5000-10000: $0.16
TAJA104K050H
TAJA104K050H

CAP TANT 0.1UF 50V 10% 1206
Data Sheet
0-2000: $0.41
